MySQL技术内幕 InnoDB存储引擎 第2版
环境安装
docker-compose --file docker-compose.yml up -d
启动mysql容器
docker-compose.yml文件如下
volumes里面挂载了两个目录
- 配置文件~/data/mysql/conf/my.cnf
,
- 数据目录,方便在宿主机看到数据 ~/data/mysql/data
1
2
3
4
5
6
7
8
9
10
11
12
13
14 version: "3"
services:
mysql:
image: mysql:5.7
command: --default-authentication-plugin=mysql_native_password --character-set-server=utf8mb4 --collation-server=utf8mb4_unicode_ci
restart: always
ports:
- 3306:3306
environment:
MYSQL_ROOT_PASSWORD: root
volumes:
- ~/data/mysql/conf/my.cnf:/etc/mysql/my.cnf
- ~/data/mysql/data:/var/lib/mysql
mysql -u root -p root
连接到mysql,查看innodb引擎 情况
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48 > show engine INNODB STATUS\G
***************************[ 1. row ]***************************
Type | InnoDB
Name |
Status |
=====================================
2022-06-04 14:51:57 0x7faf007f8700 INNODB MONITOR OUTPUT
=====================================
Per second averages calculated from the last 53 seconds
-----------------
BACKGROUND THREAD
-----------------
srv_master_thread loops: 2 srv_active, 0 srv_shutdown, 267 srv_idle
srv_master_thread log flush and writes: 269
----------
SEMAPHORES
----------
OS WAIT ARRAY INFO: reservation count 2
OS WAIT ARRAY INFO: signal count 2
RW-shared spins 0, rounds 4, OS waits 2
RW-excl spins 0, rounds 0, OS waits 0
RW-sx spins 0, rounds 0, OS waits 0
Spin rounds per wait: 4.00 RW-shared, 0.00 RW-excl, 0.00 RW-sx
------------
TRANSACTIONS
------------
Trx id counter 1795
Purge done for trx's n:o < 0 undo n:o < 0 state: running but idle
History list length 0
LIST OF TRANSACTIONS FOR EACH SESSION:
---TRANSACTION 421865085982560, not started
0 lock struct(s), heap size 1136, 0 row lock(s)
--------
FILE I/O
--------
I/O thread 0 state: waiting for completed aio requests (insert buffer thread)
I/O thread 1 state: waiting for completed aio requests (log thread)
I/O thread 2 state: waiting for completed aio requests (read thread)
I/O thread 3 state: waiting for completed aio requests (read thread)
I/O thread 4 state: waiting for completed aio requests (read thread)
I/O thread 5 state: waiting for completed aio requests (read thread)
I/O thread 6 state: waiting for completed aio requests (write thread)
I/O thread 7 state: waiting for completed aio requests (write thread)
I/O thread 8 state: waiting for completed aio requests (write thread)
I/O thread 9 state: waiting for completed aio requests (write thread)
Pending normal aio reads: [0, 0, 0, 0] , aio writes: [0, 0, 0, 0] ,
ibuf aio reads:, log i/o's:, sync i/o's:
bufferPoolSize
> show variables like 'innodb_buffer_pool_size'\G
(END)
***************************[ 1. row ]***************************
Variable_name | innodb_buffer_pool_size
Value | 134217728 => 128MB
查看mysql相关配置
cd /
find . -name "*mysql*" | grep "log"
或者用 mysqlCli 查询
mysqlCli> show variables like '%datadir%' \G
查询得知,mysql容器相关的文件存放在 /var/lib/mysql
Buffer Pool
按照 file -> shard -> buffer page的结构,shard内部对page进行缓存管理,采用LRU策略。
insert buffer & change buffer
每个shard最多有 pgsize 个page,如果page满了,会触发lru,如果清理的page是dirty的,则落盘
github 简单的实现
日志文件
日志分为以下几种
slow log,二进制文件 ,记录查询较慢的sql,借助 mysqldumpslow
分析,MySQL本身的文件
bin log,逻辑日志 ,记录数据库执行 更新的sql,供salve复制数据,MySQL本身的文件
redo log,物理日志 ,WAL日志,保证持久性,InnoDB特有
undo log,逻辑日志 ,记录事务执行过程中的相反操作(insert 变为 delete),(update 变为反向update)
Binlog
开启binlog需要在 my.cnf
配置
[mysqld]
log_bin=mysql-bin
server-id=1
Binlog 存储
> show master status\G
***************************[ 1. row ]***************************
File | mysql-bin.000003
Position | 856
Binlog_Do_DB |
Binlog_Ignore_DB |
Executed_Gtid_Set |
查看binlog格式,binlog有三种格式STATEMENT
,ROW
,MIX
> select @@session.binlog_format;
+-------------------------+
| @@session.binlog_format |
+-------------------------+
| ROW |
+-------------------------+
建表并初始化数据
CREATE TABLE ` t_sample ` (
` id ` bigint ( 20 ) NOT NULL AUTO_INCREMENT ,
` name ` varchar ( 16 ) COLLATE utf8mb4_unicode_ci NOT NULL DEFAULT '' ,
PRIMARY KEY ( ` id ` )
) ENGINE = InnoDB AUTO_INCREMENT = 3 DEFAULT CHARSET = utf8mb4 COLLATE = utf8mb4_unicode_ci
insert into t_sample ( name ) values ( "bing" ),( "draymonder" );
更新数据的binlog
update t_sample set name = 'amor' where id = 2 ;
查看binlog文件,需要使用mysql自带的 mysqlbinlog
,用cat不行,因为binlog是二进制文件
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27 > mysqlbinlog --start-position=856 mysql-bin.000003 -v
# at 993
# 220605 6 : 16 : 18 server id 1 end_log_pos 1047 CRC32 0 x62752495 Table_map : ` amor ` . ` t_sample ` mapped to number 110
# at 1047
# 220605 6 : 16 : 18 server id 1 end_log_pos 1117 CRC32 0 xdcaf7236 Update_rows : table id 110 flags : STMT_END_F
BINLOG '
MkqcYhMBAAAANgAAABcEAAAAAG4AAAAAAAEABGFtb3IACHRfc2FtcGxlAAIIDwJAAACVJHVi
MkqcYh8BAAAARgAAAF0EAAAAAG4AAAAAAAEAAgAC///8AgAAAAAAAAAKZHJheW1vbmRlcvwCAAAA
AAAAAARhbW9yNnKv3A==
' /*!*/ ;
### UPDATE ` amor ` . ` t_sample `
### WHERE
### @ 1 = 2
### @ 2 = 'draymonder'
### SET
### @ 1 = 2
### @ 2 = 'amor'
# at 1117
# 220605 6 : 16 : 18 server id 1 end_log_pos 1148 CRC32 0 x24efb3f3 Xid = 42
COMMIT /*!*/ ;
SET @@ SESSION . GTID_NEXT = 'AUTOMATIC' /* added by mysqlbinlog */ /*!*/ ;
DELIMITER ;
# End of log file
/*!50003 SET COMPLETION_TYPE=@OLD_COMPLETION_TYPE*/ ;
/*!50530 SET @@SESSION.PSEUDO_SLAVE_MODE=0*/ ;
删除数据的binlog
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25 delete from t_sample where name = 'amor' ;
> mysqlbinlog --start-position=856 mysql-bin.000003 -v
# at 1285
# 220605 6 : 27 : 50 server id 1 end_log_pos 1339 CRC32 0 x5567ded4 Table_map : ` amor ` . ` t_sample ` mapped to number 110
# at 1339
# 220605 6 : 27 : 50 server id 1 end_log_pos 1388 CRC32 0 x07ba59c7 Delete_rows : table id 110 flags : STMT_END_F
BINLOG '
5kycYhMBAAAANgAAADsFAAAAAG4AAAAAAAEABGFtb3IACHRfc2FtcGxlAAIIDwJAAADU3mdV
5kycYiABAAAAMQAAAGwFAAAAAG4AAAAAAAEAAgAC//wCAAAAAAAAAARhbW9yx1m6Bw==
' /*!*/ ;
### DELETE FROM ` amor ` . ` t_sample `
### WHERE
### @ 1 = 2
### @ 2 = 'amor'
# at 1388
# 220605 6 : 27 : 50 server id 1 end_log_pos 1419 CRC32 0 x79c74b7b Xid = 59
COMMIT /*!*/ ;
SET @@ SESSION . GTID_NEXT = 'AUTOMATIC' /* added by mysqlbinlog */ /*!*/ ;
DELIMITER ;
# End of log file
/*!50003 SET COMPLETION_TYPE=@OLD_COMPLETION_TYPE*/ ;
/*!50530 SET @@SESSION.PSEUDO_SLAVE_MODE=0*/ ;
RedoLog
为了取得更好的读写性能,InnoDB会将数据缓存在内存中(InnoDB Buffer Pool),对磁盘数据的修改也会落后于内存,这时如果进程或机器崩溃,会导致内存数据丢失,为了保证数据库本身的一致性和持久性,InnoDB维护了REDO LOG。
修改Page之前需要先将修改的内容记录到REDO中,并保证REDO LOG早于对应的Page落盘,也就是常说的WAL,Write Ahead Log。当故障发生导致内存数据丢失后,InnoDB会在重启时,通过重放REDO,将Page恢复到崩溃前的状态。
Redolog 存储
root@8a83121d6e85:/var/lib/mysql# ls -lsh | grep "ib"
4.0K -rw-r----- 1 mysql mysql 1.4K Jun 5 06:05 ib_buffer_pool
48M -rw-r----- 1 mysql mysql 48M Jun 5 06:29 ib_logfile0
48M -rw-r----- 1 mysql mysql 48M Jun 5 06:05 ib_logfile1
76M -rw-r----- 1 mysql mysql 76M Jun 5 06:29 ibdata1
12M -rw-r----- 1 mysql mysql 12M Jun 5 06:26 ibtmp1
innodb 存储引擎至少有1个重做日志文件组(group),每个group至少有2个文件,如默认的ib_logfile0
和ib_logfile1
,InnoDB先写ib_logfile0
,写满了后,切换到ib_logfile1
,再写满后,再继续写ib_logfile0
1
2
3
4
5
6
7
8
9
10
11
12
13
14 show variables like 'innodb%log%'\G
***************************[ 8. row ]***************************
Variable_name | innodb_log_file_size
Value | 50331648 => 48MB
***************************[ 9. row ]***************************
Variable_name | innodb_log_files_in_group
Value | 2 => 2个
> show variables like '%flush%'\G
***************************[ 7. row ]***************************
Variable_name | innodb_flush_log_at_trx_commit
Value | 1 => 每提交一个事务,就刷盘 redo log buffer 到 log文件里
> show engine innodb status\G; (插入大量的数据)
---
LOG
---
Log sequence number 127664222
Log flushed up to 120711324
Pages flushed up to 70622487
Last checkpoint at 62890079
log sequence number: 代表当前的重做日志redo log(in buffer)在内存中的LSN
log flushed up to: 代表刷到redo log file on disk中的LSN
pages flushed up to: 代表已经刷到磁盘数据页上的LSN
last checkpoint at: 代表上一次检查点所在位置的LSN
log sequence number >= log flushed up to >= pages flushed up to >= last checkpoint at
大概格式
(Page ID,Record Offset,(Filed 1, Value 1) … (Filed i, Value i) … )
其中,PageID指定要操作的Page页,Record Offset记录了Record在Page内的偏移位置,后面的Field数组,记录了需要修改的Field以及修改后的Value。
InnoDB中通过min-transaction实现,简称mtr,需要原子操作时,调用mtr_start生成一个mtr,mtr中会维护一个动态增长的m_log,这是一个动态分配的内存空间,将这个原子操作需要写的所有REDO先写到这个m_log中,当原子操作结束后,调用mtr_commit将m_log中的数据拷贝到InnoDB的Log Buffer。
redo log 大小设置
设置过大,恢复需要花很长时间。
设置过小,一个事务可能被记录在了不同的 redo log子log上。设置的太小会导致频繁的 async checkpoint
,频繁刷盘
redo log、bin log 区别
binlog是mysql有的,和存储引擎无关,redo log是 InnoDB特有的。
binlog记录的逻辑日志,redo log记录的物理日志(关于每个页的更改的物理情况)
redo log是InnoDB实现的wal日志。二进制日志只在每次事务提交的时候一次性写入缓存中的日志文件,redo log一直会记录。
为了保证存储引擎层和上层二进制日志的一致性,二者之间使用了 两阶段事务
Redo log 相关文章
Undo Log
逻辑日志,记录事务执行过程中的相反操作(insert 变为 delete),(update 变为反向update)
实现MVCC的非锁定读。读快照的能力
InnoDB中的锁
全局锁
表锁 (lock read/write)
行级锁(需要时才加上,事务结束后 释放)
共享锁(S Lock):允许事务读一行数据
排它锁(X Lock):允许事务删除 or 更新数据
意向锁:对一行进行加锁,需要对数据库、表、页加粗粒度 的锁
锁相关
Record lock、Gap lock、Next-key lock
一致性读
一致性非锁定读
在 READ COMMITED
事务隔离级别下,对于快照数据,非一致性读总是读取最新的行数据版本
在 REPEATABLE READ
事务隔离级别下,对于快照数据,非一致性读总是读取事务开始时的行数据版本
查看隔离级别
select @@ tx_isolation
+ -----------------+
| @@ tx_isolation |
+ -----------------+
| REPEATABLE - READ |
+ -----------------+
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28 --
事务 1
begin ;
select id , name from amor . t_sample where id = 100 ;
=>
+ -----+------+
| id | name |
+ -----+------+
| 100 | amor |
+ -----+------+
---
事务 2
begin ;
update amor . t_sample set name = 'tr 2' where id = 100 ;
commit ;
---
事务 1
select id , name from amor . t_sample where id = 100 ;
=>
+ -----+------+
| id | name |
+ -----+------+
| 100 | amor |
+ -----+------+
commit ;
---
一致性锁定读
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28 --
事务 1
begin ;
select id , name from amor . t_sample where id = 100 lock in share mode ;
=>
+ -----+------+
| id | name |
+ -----+------+
| 100 | amor |
+ -----+------+
---
事务 2
begin ;
update amor . t_sample set name = 'tr 3' where id = 100 ;
commit ; => 因为事务 1 加了读锁,所以这里是阻塞的,等事务 1 commit / rollback 才能完成事务 2 的 commit
---
事务 1
select id , name from amor . t_sample where id = 100 ;
=>
+ -----+------+
| id | name |
+ -----+------+
| 100 | amor |
+ -----+------+
commit ;
---
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41 --
事务 1
begin ;
select id , name from amor . t_sample where id = 100 for update ;
=>
+ -----+------+
| id | name |
+ -----+------+
| 100 | tr 3 |
+ -----+------+
---
事务 2
begin ;
select id , name from amor . t_sample where id = 100 ; => 这里是用的非锁定读,可以正常读数据
=>
+ -----+------+
| id | name |
+ -----+------+
| 100 | tr 3 |
+ -----+------+
select id , name from amor . t_sample where id = 100 lock in share mode ; 因为事务 1 加了 X锁 ,所以这里是阻塞的,等事务 1 commit / rollback 才能完成这里的查询
update amor . t_sample set name = 'tr 4' where id = 100 ;
commit ;
---
事务 1
select id , name from amor . t_sample where id = 100 ;
=>
+ -----+------+
| id | name |
+ -----+------+
| 100 | tr 3 |
+ -----+------+
commit ;
---
索引
主键索引(聚簇索引) -> 叶子存所有数据
使用自增主键更好 (业务主键的话,写树操作成本高)
非主键索引 -> 叶子存主键值(查询所有数据需要回表到主键索引去查)
覆盖索引 (尽可能走索引,增加查询效率)
索引引用
MySQL索引原理及慢查询优化
事务 TODO
redolog 保证事务原子性和持久性
undolog 保证事务 一致性
事务隔离实现
未提交读
已提交读 -> 每句SQL执行时创建视图
可重复读 -> 事务开始时创建视图
串行读
扩容
背景:
db 存储快满了,因此需要扩容,执行时间为凌晨
db扩容期间会有 5s 左右时间不可写
db的架构为 proxy + 主从,查询必须带分片键

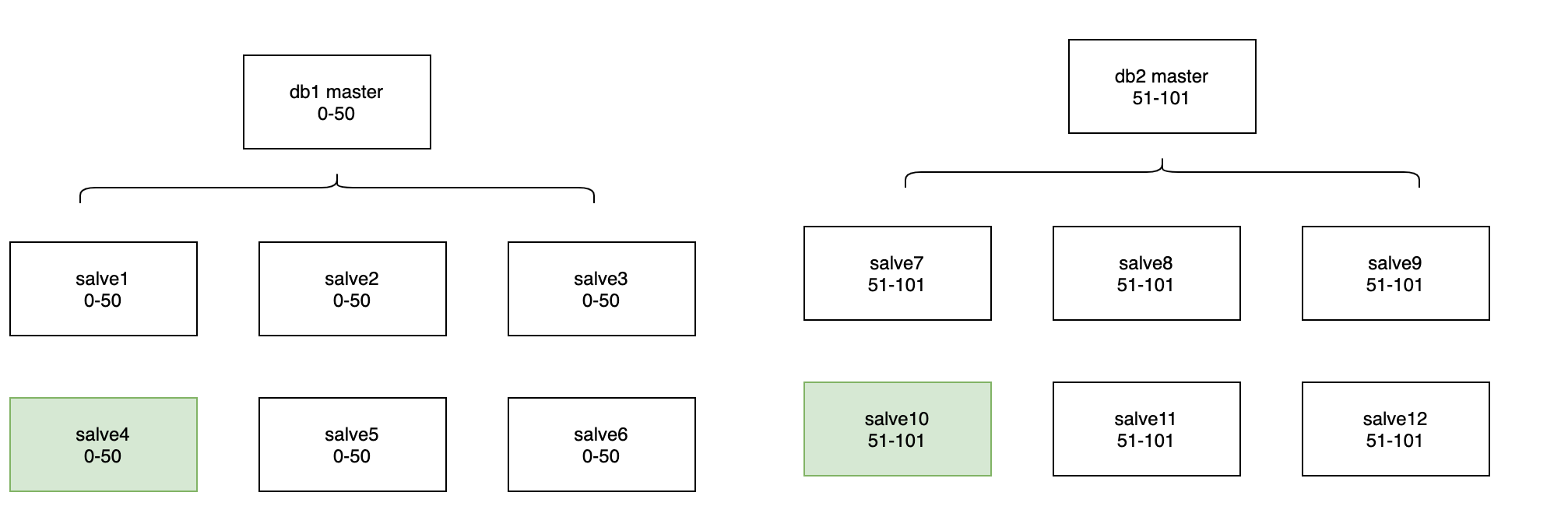

扩容前
扩容后
附录
InnoDB undo log 漫游 http://mysql.taobao.org/monthly/2015/04/
InnoDB redo log漫游 http://mysql.taobao.org/monthly/2015/05/
Innodb change buffer介绍 http://mysql.taobao.org/monthly/2015/07/
InnoDB 事务子系统介绍 http://mysql.taobao.org/monthly/2015/12/
InnoDB index lock前世今生 http://mysql.taobao.org/monthly/2015/07/05/
